Textile industry plants typologies

Plant type:
W32

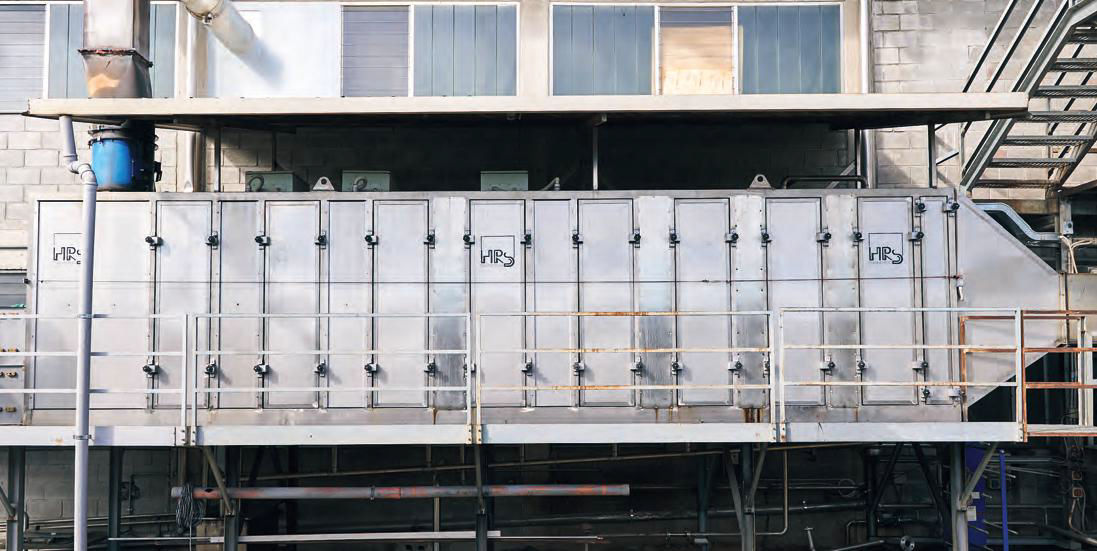

The new HRS plants allows the flue gas of any rameuse to be treated even in the most difficult processes. The international BATs, implemented in Italy, set a series of technical parameters that the new HRS fully complies with. The new HRS is synonymous with high efficiency, is quality of the materials, is Industry 4.0, is new generation, is automatic scrubbing, is the best solution available on the global market.

Maximum treatable flue gas flow 16'000 m3/h a 150°C
Inlet flue gas temperature 80/210 °C
Outlet flue gas temperature 40°C
Inlet water temperature 20°C
Outlet water temperature 80°C
Quantity of water supplied 6,5 m3/h
KW recovered 540
Natural gas saved 55 m3/h
Treatment efficiency 90/95 %
Automatic treatment system INCLUDED
New HRS electrofilters INCLUDED

Plant type:
W33

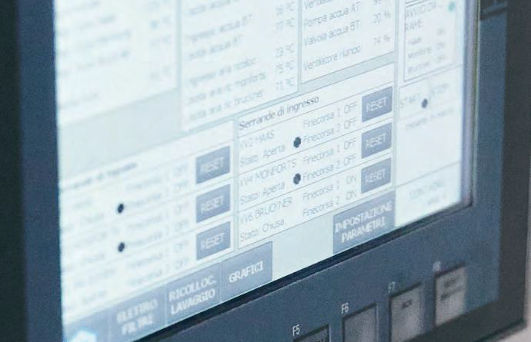

The electrofilters of the new HRS are powered by “sections” with new generation boards that control the supply voltage in real time, displaying the reading on the operator's panel. The new HRS will be supplied with 3 electrofilter benches to comply with the international BATs but it will be set up to easily add another bench for the machining of raw fabrics. The high efficiency is guaranteed by building mechanics of extremely high value and completely automatic management of the entire system.

Maximum treatable flue gas flow 24'000 m3/h a 150°C
Inlet flue gas temperature 80/210 °C
Outlet flue gas temperature 40°C
Inlet water temperature 20°C
Outlet water temperature 80°C
Quantity of water supplied 10 m3/h
KW recovered 810
Natural gas saved 85 m3/h
Treatment efficiency 90/95 %
Automatic treatment system INCLUDED
New HRS electrofilters INCLUDED

Plant type:
W34

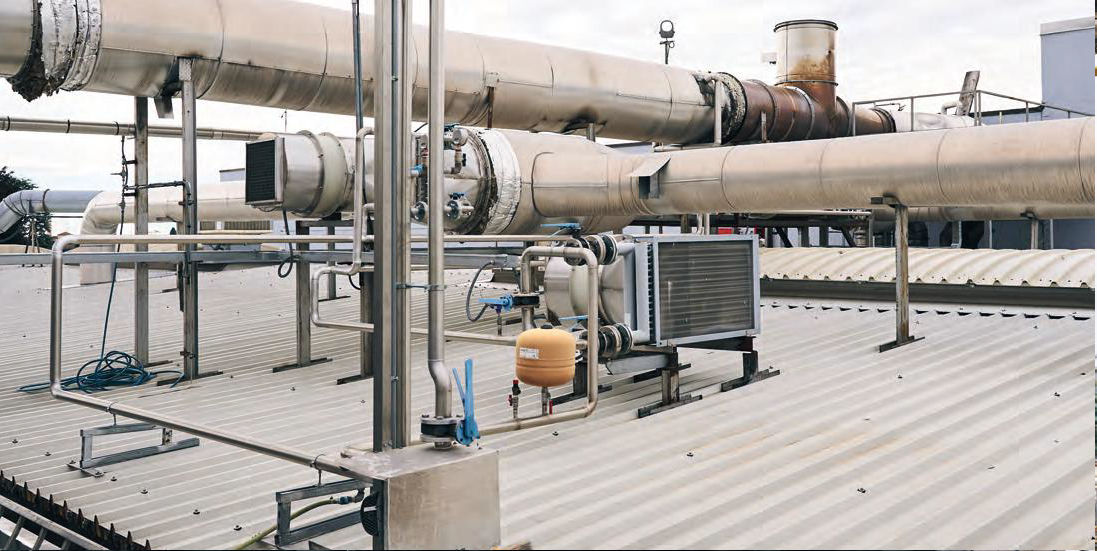

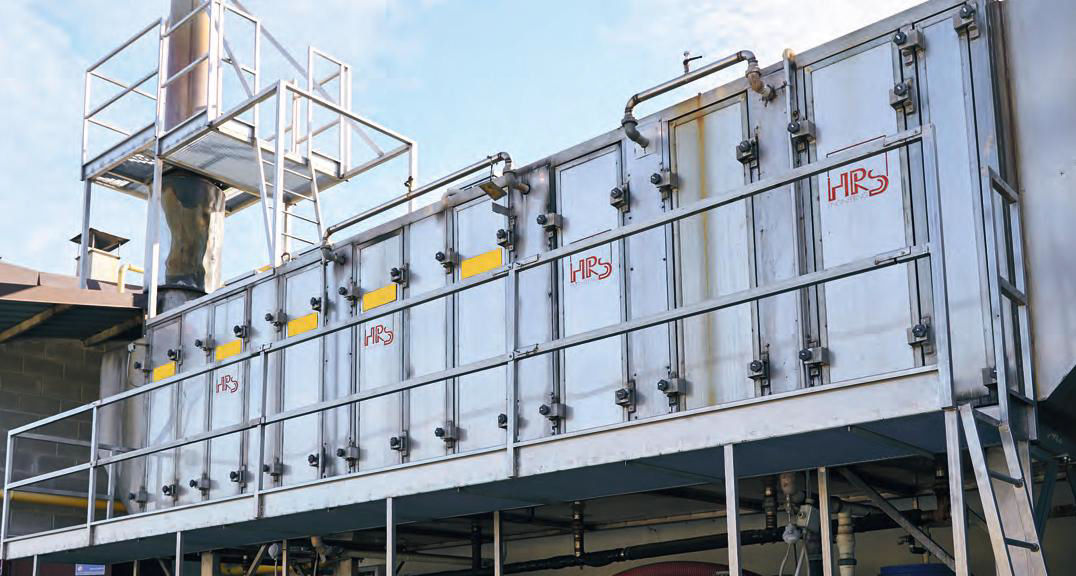

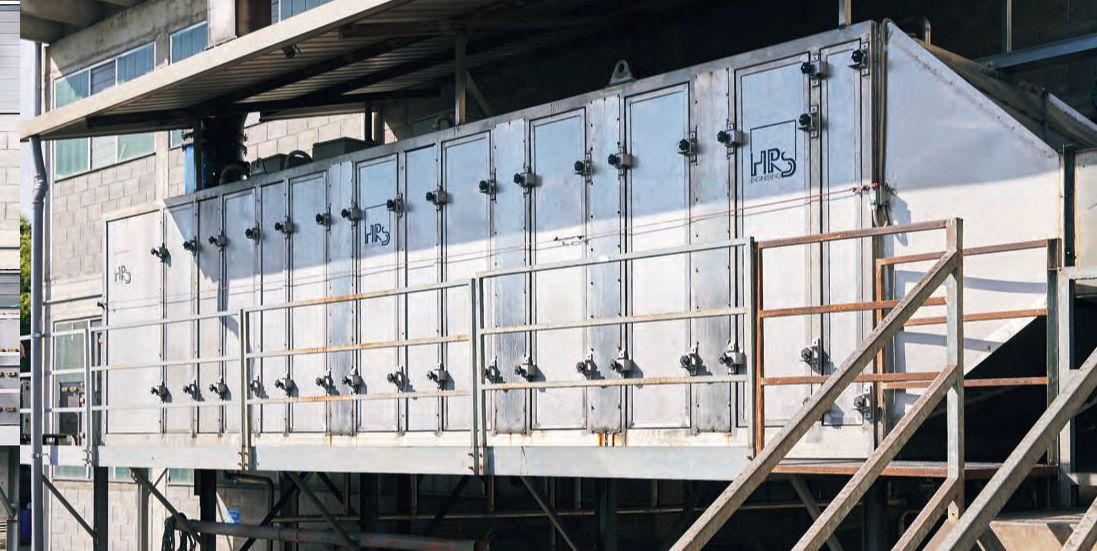

The automatic scrubbing system of the new HRS guarantees continuous and constant functioning of the plant, greatly reducing manual operations. The electrofilters are designed to best meet the Client’s needs and the plants are sized to optimize the costs, guaranteeing the required treatment. The plants can be installed either inside the plants or outdoors and can be positioned either on the ground or on raised platforms above the rameuses.

Maximum treatable flue gas flow 32'000 m3/h a 150°C
Inlet flue gas temperature 80/210 °C
Outlet flue gas temperature 40°C
Inlet water temperature 20°C
Outlet water temperature 80°C
Quantity of water supplied 13 m3/h
KW recovered 1050
Natural gas saved 110 m3/h
Treatment efficiency 90/95 %
Automatic treatment system INCLUDED
New HRS electrofilters INCLUDED

Plant type:
W44

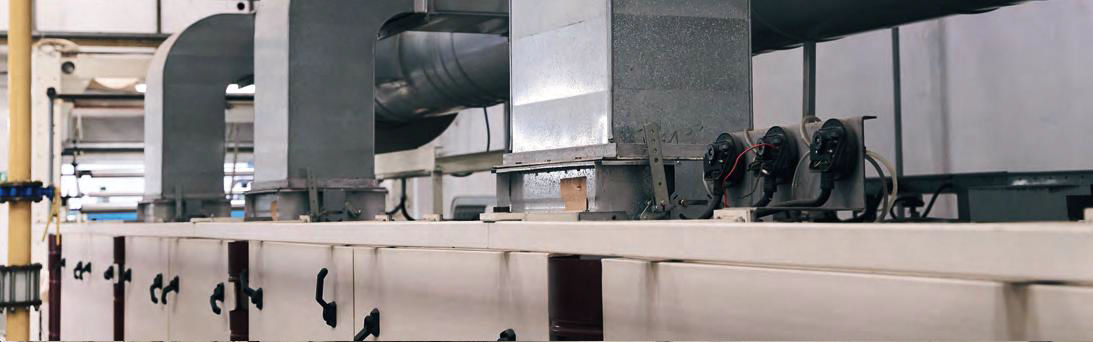

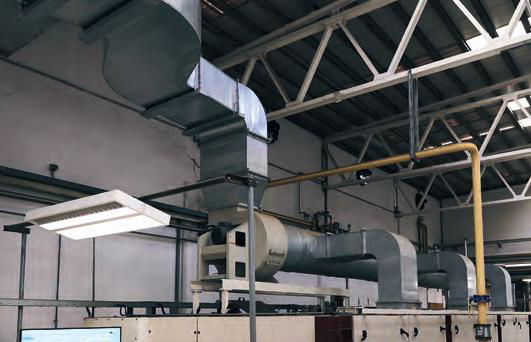

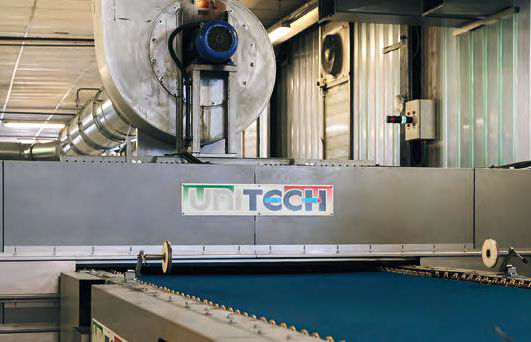

The new HRS allows fully automatic management of flue gas arriving from diverse rameuses without creating problems at rameuses’ exhaust pipes. The fan is controlled by the inverter to guarantee a given depression; the modulating valve controls the quantity of the water in the heat exchangers to guarantee correct cooling of the flue gas. Automatic scrubbing takes place once a day with the rameuses empty of fabric so as to avoid the emission of flue gas into the atmosphere.

Maximum treatable flue gas flow 44'000 m3/h a 150°C
Inlet flue gas temperature 80/210 °C
Outlet flue gas temperature 40°C
Inlet water temperature 20°C
Outlet water temperature 80°C
Quantity of water supplied 17 m3/h
KW recovered 1440
Natural gas saved 150 m3/h
Treatment efficiency 90/95 %
Automatic treatment system INCLUDED
New HRS electrofilters INCLUDED
